HomeSign Types > First Surface LED Signs

Glowing Signs

PinLights LED Cabinet Sign  PinLights  PinLights Cabinet Sign

Click HERE, or Call, to Request a FIRM, Installed, SAME-DAY PRICE QUOTE

 (NOT just a simple, non-binding "Estimate")

TURN-KEY Sign Design, Sign Manufacturing, Sign Installation, and Sign Service


A Brighter Future...Using Less Energy

PinLights

Signs Manufacturing incorporates a patent pending high-tech design into our unique new-look concept.

PinLights LED first-surface lighting systems feature SolarBrite LEDs that are optically enhanced to appear larger.

Cabinet signs with color graphics and PinLights LED first-surface lighting is a hands-down winner.

No other face-decorated cabinet sign incorporates direct lighting.  And when compared to incandescent lighting or fluorescent back-lighted cabinet signs it is better-looking, cheaper, lasts longer, and uses less energy.

The US Small Business Administration (SBA) says that an electronic message center will increase a store's volume 15 to 150%.

The attribute that makes LED Electronic Message Centers so effective is that they use light to attract attention during the day.

"That's beautiful!"  - Emily Wright, Chit Chat Restaurant, after seeing her new sign in our warehouse before installation.

This is the only other sign face that can do so.

Airheads PinLights SignWith LED first-surface lighting, again like electronic message centers, you determine the daytime brightness of your sign by the density, colors, and patterns of lighting you choose.  PinLights gives you choices, unlike all other forms of lighting.

PinLights can also comply with many cities bans on flashing lights, which causes electronic message centers to be banned or severely restricted, or they can flash or twinkle (in multiple or varying colors.)

But at a minimum the decorated sign face is comparable to a traditional back-lighted sign face when not lighted.

In other words, a PinLights sign will always look better, and attract more attention, than any cabinet sign ever built previously; and...it can cost about the same to purchase, but use less energy.

Many companies manufacture LEDs.  There are over 5,000 varied LEDs available, and they vary greatly as to brightness, lux, light-dispersal (viewing) angle, useful lifetime, and lifetime.

Some are very cheap, some are quite expensive.

Signs Manufacturing only uses SolarBrite LEDs that are rated to retain 80% of their brightness for 60,000+ hours.  These are the most expensive, but highest value, conventional LEDs.  Our selection of LEDs is what makes our signs brighter, and last longer.PinLights Face in Assembly

Solarbright lighted first-surface sign cabinet.As an example, a White SolarBrite LED is 280 lux, compared to our BrighterSigns neon's 235 lux, or standard neon's 140 lux.  "Lux" is the candle-power of light shining on a surface.

However, with visible light sources "nits" are more important than "lux."  As explained below, Signs Manufacturing Corporation's SolarBrite LEDs are 8,000 to 13,000 nits, depending on color.

Sign Face with First-surface LEDsA SolarBrite LED incorporates a new kind of chip, different from all other LEDs.  Signs Manufacturing is an industry leader in the implementation of new technology in advertising.

SolarBrite LEDs utilize military specification coatings on the circuit boards the LEDs are attached to, preventing corrosion and electrical problems.

Like neon, LEDs are also affected by voltage.  For instance, an LED will also burn nearly 100% brighter if you double the power feeding it.  The LED will last about 1/6 as long, however, making this alternative quite expensive in total cost.

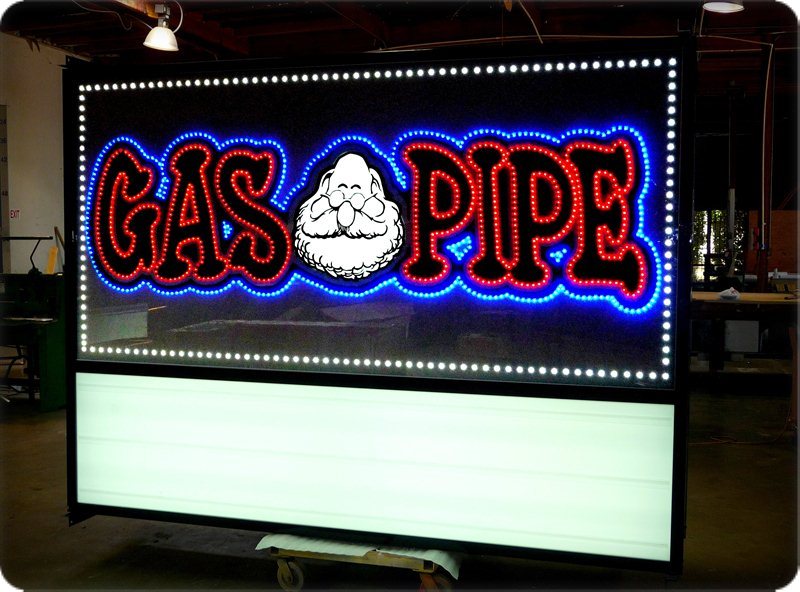

Gas PipeWe power our SolarBrite LEDs properly.

SolarBrite PinLights LEDs are available in 5 fixed colors (Red, Green, Blue, White and Yellow) or as multi-color infinitely-variable individual lights featuring 65,000,000 colors.PinLights Face in Shop

Unlike virtually every other LED sign currently manufactured, each individual PinLights LED is independently serviceable.

And if a single LED does fail all of the other LEDs still light.  Our wiring is in parallel, not in series.

In most instances PinLights LED first-surface lighting systems can be retrofitted to existing internally lighted cabinet signs, pole signs and pylon signs, or Monument signs.

What is Binning?


ALL LED lamp production is binned, grouped with LEDs with similar properties, 3 different ways:  color, flux (brightness), and forward voltage (the minimum voltage the LED will operate at, using a specified minimum operating current.)  All 3 vary in even a single wafer’s production, so binning is critical.

LED “binning” is controlled by an ANSI minimum standard: ANSI C78 377A.  SolarBrite LEDs are binned to much tighter standards, however, which is allowed.

If a competitor BRAGS that their product is binned, they are probably warning you that they will not be able to match color and brightness later, when replacement parts are needed, because their sign’s individual LED color and flux is not adjustable.

The SolarBrite LongLife LED System


An operating LED is a direct electrical short; it will consume all the current fed to it; destroying both it and its power source.  However, an LED has a rather-constant voltage drop when operating.  A current-limiting resistor is placed in-line with LEDs to restrict the forward current.

Remember that each LED consumes differing amounts of electricity to operate, which is partially why they were binned (above.)  Forward voltage even varies based on the color of light produced by an LED.  We obviously must supply enough voltage to meet the highest forward voltage requirement.  Therefore each resistor is also sized to consume the potential over-supply of voltage from the power source feeding all the LEDs.

Done properly, this double-protection lengthens the life of LEDs (reduces heat-generation.)  This is a critical part of the SolarBrite LongLife System.

Solar Powered Energy Saving Signs


Solar Energy Saving Signs Power KitPinLights Cabinet signs can be economically directly solar powered, without even using an energy-robbing inverter, saving you even more!Flex-faced Pole Sign Cabinet with PinLights Border

They are the only major business sign that can.

You are saving much more than just energy, and money.



Energy-Saving PinLights Signs


PinLights consume 0.1 watt per light at 5 volts DC!  One thousand lights left on 8 hours per day for 365 days will use $4.01 in electricity.

Sample PinLights Sign

PinLights Signs Face - Pepsi   PinLights First-Surface LED Sign Face - Pepsi   Sample PinLights sign during the day   Sample PinLights sign at night

"That's beautiful!"

Emily Wright, Chit Chat Restaurant, upon seeing her new sign in our warehouse before installation.

PinLights sign for Chit Chat during the day PinLights sign for Chit Chat in production Amazing effect of this PinLights sign for Chit Chat at night!

PinLights Sign PinLights at Night PinLights at Night

Click to Enlarge.

  Patents Pending

UL or ETL listed Sign Component


Underwriters Laboratories has evaluated PinLights and they have been approved for use in outdoor, damp and wet location signs.

UL Approval #E345252.

Ours are the only approved individual LED first-surface lighting products.

As the manufacturer we are very proud of this.

What are LEDs?


A light-emitting diode (LED) is a semiconductor device that emits incoherent monochromatic light when electrically biased in the forward direction. This effect is a form of electroluminescence. The color depends on the semiconducting material used, and can be near-ultraviolet, visible or infrared.

A LED is a special type of semiconductor diode. Like a normal diode, it consists of a chip of semiconducting material impregnated, or doped, with impurities to create a structure called a pn junction. Charge-carriers (electrons and holes) are created by an electric current passing through the junction, and release energy in the form of photons as they recombine. The wavelength of the light, and therefore its color, depends on the band gap energy of the materials forming the pn junction. A normal diode, typically made of silicon or germanium, emits invisible far-infrared light, but the materials used for a LED have band gap energies corresponding to near-infrared, visible or near-ultraviolet light.

Unlike incandescent bulbs, which can operate with either AC or DC, LEDs require a DC supply of the correct polarity. When the voltage across the pn junction is in the correct direction, a significant current flows and the device is said to be forward biased. The voltage across the LED in this case is fixed for a given LED and is proportional to the energy of the emitted photons. If the voltage is of the wrong polarity, the device is said to be reverse biased, very little current flows, and no light is emitted.

Conventional LEDs are made of inorganic minerals such as:

  • aluminium gallium arsenide (AlGaAs) - red and infrared

  • gallium arsenide/phosphate (GaAsP) - red, orange and yellow

  • gallium nitride (GaN) - green

  • gallium phosphate (GaP) - green

  • zinc selenide (ZnSe) - blue

  • indium gallium nitride (InGaN) - blue

  • silicon carbide (SiC) - blue

  • diamond (C) - ultraviolet

LED development began with infrared and red devices, and technological advances have made possible the production of devices with ever shorter wavelengths.

Blue LEDs became available in the late 1990s. They can be added to existing red and green LEDs to produce white light. Most "white" LEDs in production today use a blue LED chip covered by a scintillate coating made of Zinc solenoid (ZnSe). The LED chip emits blue light, part of which is converted to yellow by the ZnSe. This mixture of blue and yellow light creates the impression of white - hence the bluish or yellowish tint that these diodes usually exhibit.

The most recent innovation in LED technology is a device that can emit ultraviolet light. When ultraviolet light illuminates certain materials, these materials will fluoresce or give off visible light. White light LEDs have been produced by building ultraviolet elements inside material that fluoresces to produce white light.

The semiconducting chip is encased in a solid plastic lens, which is much tougher than the glass envelope of a traditional light bulb or tube. The plastic may be colored, but this is only for cosmetic reasons and does not affect the color of the light emitted.

Most typical LEDs are designed to operate with no more than 30-60 millewatts of electrical power.  In 2002, 5 watt LEDs became available with efficiencies of 18-22 lumens per watt.

SMD (Surface Mounted Device) LEDs have been created that combine RGB color sources in one LED.  They allow the display matrix, pitch, to be much closer.  They are very expensive, but more importantly do not have the nits (candela per square meter) for outdoor use.

For outdoor use, you need at least 2,000 nits for daylight use in most situations. (The brightness of LEDs can be turned down.)

Signs Manufacturing Corporation's SolarBrite LEDs are 8,000 to 13,000 nits, depending on color.

Please stop by and see all of these products displayed in our unique Sign Lighting Laboratory and Display Showroom.

Are You a "Visual" Person?


It is difficult to picture what a sign is going to look like. What do you picture when we say "triple-layer multi-colored lighting with a textured backplate?"

Our showroom is designed to solve that problem. Most people are visual ... they need to see something firsthand to understand what it is and whether it has value to them. Seeing is believing!

Visit our Showroom to see for yourself.

Don't buy your sign from a drawing, a slick website, or photo-shopped pictures,
when you can actually see and side-by-side compare Real signs and designs.
